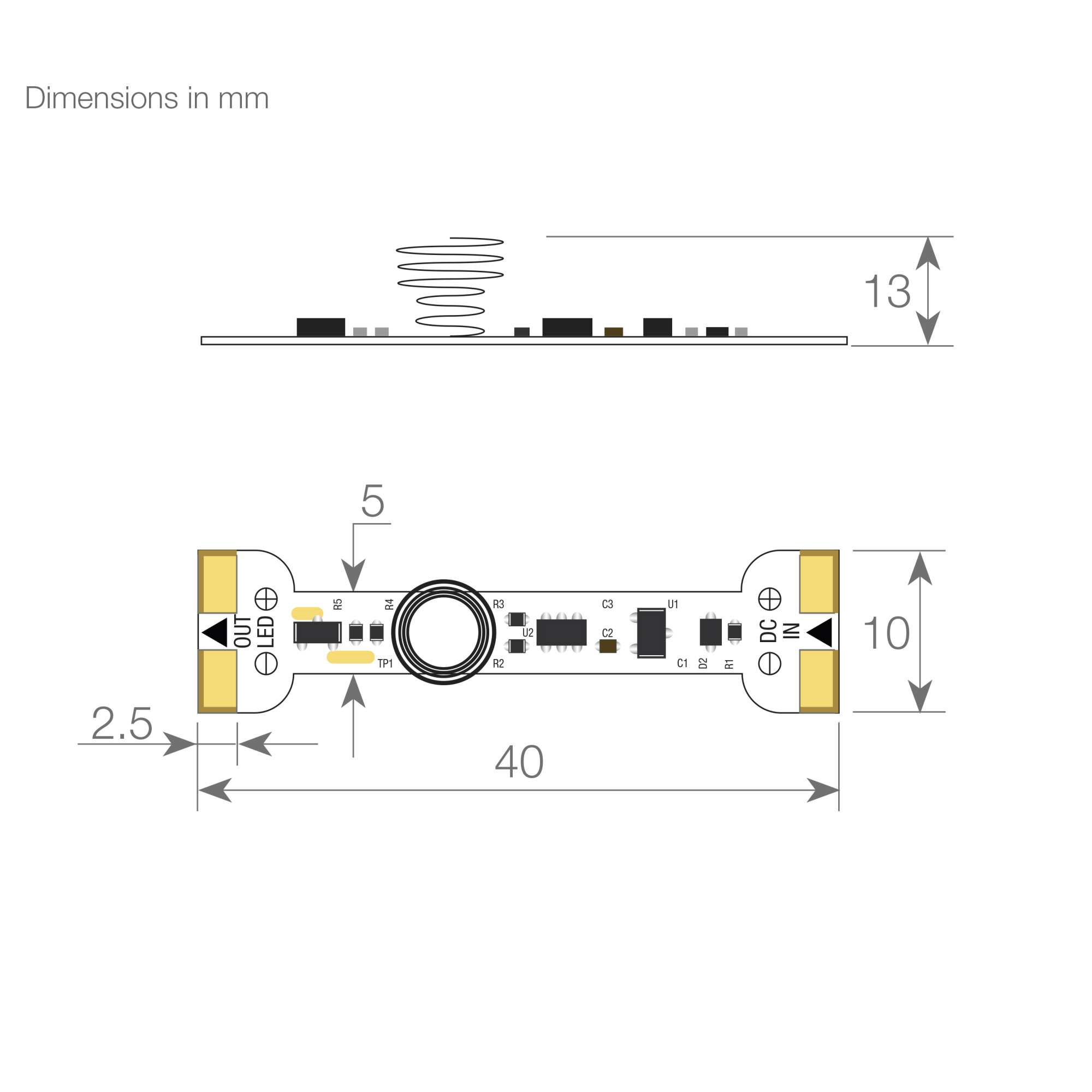

Small switch with touch dimmer function and flexible PCB for mounting on led profiles. This switch can be cut by the user to whatever size required (10mm, 8mm and 5mm) depending on the led strip they are going to use.
The cover is placed above the switch (no machine process required). Once turned off, the indicator light remains blue (a long press of 5 seconds can turn off the indicator). Allows On-Off and led intensity regulation (5% to 100%).
We recommend placing an insulating layer at the bottom of the switch when mounting inside the led profile to avoid malfunctioning.
Only 1 switch can be placed in the same luminaire.
Bluetouch tactile switch with and without indicator light
This switch can be cut by the user to whatever size required (10mm, 8mm and 5mm) depending on the led strip they are going to use.
Bluetouch tactile switch with and without indicator light
This switch can be cut by the user to whatever size required (10mm, 8mm and 5mm) depending on the led strip they are going to use.
| Ref | Description | ||
|---|---|---|---|
| 41.108 | BLUETOUCH TACTILE SWITCH WITH AND WITHOUT PILOT LIGHT - 17W (5V) - 42W (12V) - 84W (24V) - IP20 - 1 CHANNEL | See price |
|
